Drive Shaft Maintenance Manual-4

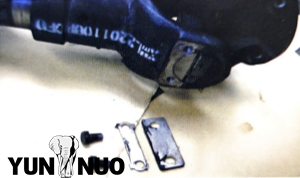

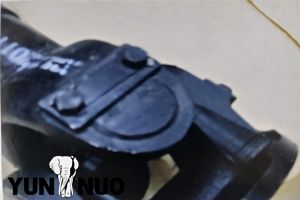

Note: If the flange fork is provided with cover plates on both sides, beat out the lock washer of the bolt, unscrew the bolt and  take off the clamping plate.

图片2图片1

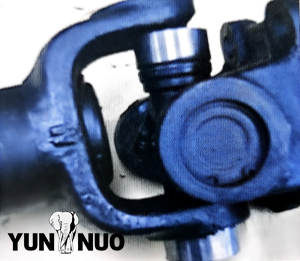

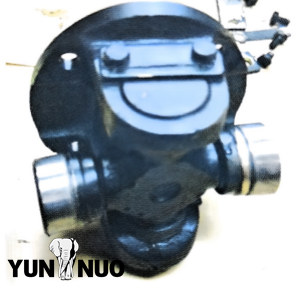

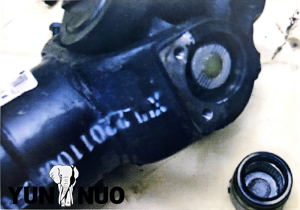

(3)Remove the cup on one end in the axial direction of the spider with a press (or hammer) (take care not to disorder or loseneedle rollers in the cup).

图片3图片4

(3) Turn it over, remove the cup on the other end in the same way.

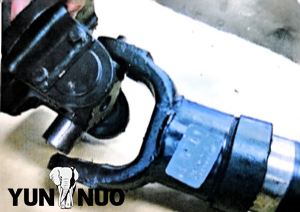

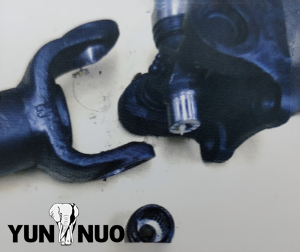

(4) Then take the flange fork off the spider.

图片5图片6图片7
