Maintenance Manual for Leaf Spring Suspension-4

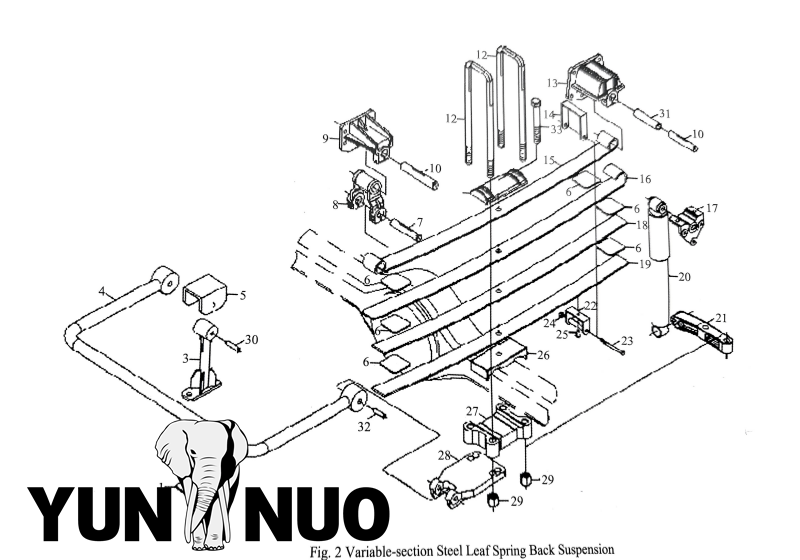

1. Pressure plate 2.Bushing 3.Suspender4. Stabilizer rod 5. Upper bracket ofsuspender6. Antifrictrion piece 7.Leaf spring pin 8. Flexible shackle 9. Fixed shackle 10.Shackle pin 11. Spring cover12.U-bolt 13. Fixed shackle 14.Clasp15.1st piece of leaf spring 16.2nd piece of leaf spring 17.Upper bracket of shock absorber 18.3rd piece of leaf spring 19.4th piece of leaf spring 20.Shock absorber 21.Lower bracket of shock absorber 22Clasp 23. Bolt 24.Nut 25.Rivet 26.Board support 27.Board support 28. Stabilizer rod base 29.Nut 30.Stabilizer rod suspender pin 31.Copper sheathing 32.Stabilizer rod pin 33.Center bolt
