Recommended Oils, Liquids and Filling Quantities for Yutong ZK6129H-2

Type of gear oil API GL-4 and above

Viscosity grade can be selected in accordance with the stable atmosphere temperature in the local area.

85W/140 used in the area with atmosphere temperature between - 15℃ and 49℃

80W/90 used in the area with atmosphere temperature between - 25℃ and 49℃

80W/140 used in the area with atmosphere temperature between - 25℃ and 49℃

5W/90 used in the area with atmosphere temperature between - 57℃ and 49℃

5.5 Oil for power steering

Grade: ATF ,III Type

5.6 Clutch Oil

Grade brake fluid, grade DOT 4

5.7 Grease

2# common lithium-base grease suitable for temperature-20~120℃

3# common lithium-base grease suitable for temperature - 20~150℃

5.8 Ant freezing fluid

Users can select different brands of an t freezing fluid in accordance with the stable atmosphere temperature in the local area.

-10# ant freezing fluid used in the area with atmosphere temperature above - 10℃

-25# ant freezing fluid used in the area with atmosphere temperature above - 25℃

-35# ant freezing fluid used in the area with atmosphere temperature above - 35℃

-45# ant freezing fluid used in the area with atmosphere temperature above - 45℃

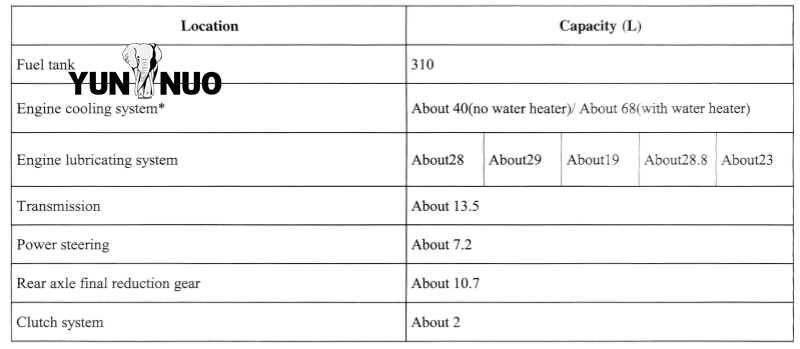

5.9 Capacity data

Note: for items marked with *, follow the scale mark in auxiliary water tank when filling.
